| Tempat asal: | Cina |
| Nama merek: | Original |
| Sertifikasi: | CE/ROHS/FCC/SGS |
| Nomor model: | Seri DDF |
| Kuantitas min Order: | 20 pcs |
|---|---|
| Harga: | negotiate |
| Kemasan rincian: | KARTON |
| Waktu pengiriman: | 4-6 minggu |
| Syarat-syarat pembayaran: | T / T |
| Menyediakan kemampuan: | 2000pcs per minggu |
| Torsi aktuator: | Jam 2 siang | ukuran batang: | 10x10 |
|---|---|---|---|
| Bahan tubuh: | Kuningan Tempa | Torsi pembukaan katup: | <1N.m |
| Aplikasi: | Pendinginan / AC | Tekanan nominal: | 1.6Mpa |
| Media kerja: | air | Suhu Cairan: | 5 ~ 95 ℃ |
| Cahaya Tinggi: | 1.6MPa Katup Bola Bermotor,Katup Layanan Pendinginan Seri DDF,Katup Bola Bermotor Batang 10x10 |
||

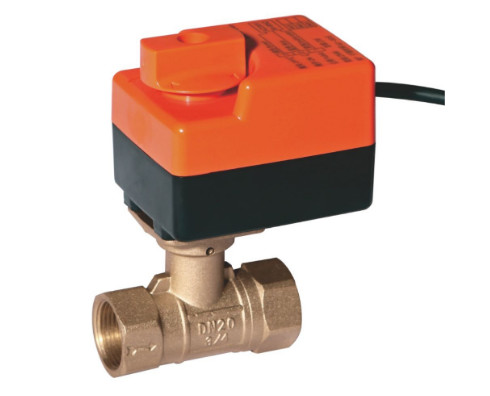

Katup Bola Bermotor Untuk Sistem Pendingin / Pendingin Udara, Unit Kondensasi, Unit Pendingin
DQF-A * DQQ-A -Parameter produk
Bahan utama: menempa tubuh kuningan, segel PTFE / HNBR
Torsi aktuator: 2N.m
Torsi pembukaan katup: <1N.m
Tekanan nominal: 1.6MPa
Media kerja: air
Suhu fluida 5 ~ 95 ℃
Ukuran batang: 10x10
Spesifikasi
| Memesan Tidak. |
Model | Katup Tipe |
DN | Benang ukuran |
Kvs | Maksimum diferensial tekanan kPa |
Demensi | |
| L | H | |||||||
| 15000 | DQF-A-220 * DQQ-AK3-220 | 2 jalan | 20 | G3 / 4 | 9.5 | 600 | 74 | 43.5 |
| 15002 | DQF-A-220 * DQQ-AK2-220 | 2 jalan | 20 | G3 / 4 | 9.5 | 600 | 74 | 43.5 |
| TIDAK. | Definisi kode | pilihan dan interpretasi | |||
| ① | Seri bodi katup bola bermotor | DQF | |||
| ② | Kode seri bodi katup | A = Urutan pengembangan | |||
| ③ | Jenis katup | 2 = katup dua arah | |||
| ④ | Ukuran katup | 20 = DN20 | |||
| ⑤ | Seri aktuator katup bola bermotor | DQQ | |||
| ⑥ | Kode seri aktuator | A = Urutan pengembangan | |||
| ⑦ | Mode kontrol | K2 = dua kabel, hidup / mati K3 = tiga kabel, hidup / mati | |||
| ⑧ | Daya masukan | 24AC = 24VAC, 220 = 220VAC | |||
Produk parameDQF-B Series- Parameter produk
● Bahan utama: tubuh kuningan tempa, segel PTFE / HNBR
● Torsi pembukaan katup:
DN15 ~ DN25 ＜ 1N.m, DN32 ~ 50 ＜ 2N.m
● Tekanan nominal: 1.6MPa ● Media kerja: air
● Suhu fluida 5 ~ 95 ℃ ● Ukuran batang: 10x10
|
Model | DQQ-B1 | DQQ-B2 | DQQ-B3 | DQQ-E2-10 | |||||||
| Stroke dinilai | 90 ° | 90 ° | 90 ° | 90 ° | ||||||||
| Nilai dorong | 2N.m | 10 malam | 5N.m | 10 malam | ||||||||
| Foto | |
|
|
|
||||||||
| Nomor pesanan. | Model | Jenis Katup | DN | benang ukuran |
Kvs | demension | Maksimum diferensial tekanan (KPa) |
Maksimum diferensial tekanan (KPa) |
最 Maksimal diferensial tekanan (KPa) |
Maksimum diferensial tekanan (KPa) |
||
| L | H | D | ||||||||||
| 15579 | DQF-B-215 | 2 jalan | 15 | G1 / 2 | 5.6 | 60 | 39 | - | 600 | - | 600 | - |
| 15580 | DQF-B-215A | 2 jalan | 15 | G1 / 2 | 1.2 | 60 | 39 | - | 600 | - | 600 | - |
| 15581 | DQF-B-215B | 2 jalan | 15 | G1 / 2 | 2.5 | 60 | 39 | - | 600 | - | 600 | - |
| 15582 | DQF-B-215C | 2 jalan | 15 | G1 / 2 | 3.6 | 60 | 39 | - | 600 | - | 600 | - |
| 15583 | DQF-B-215D | 2 jalan | 15 | G1 / 2 | 4.6 | 60 | 39 | - | 600 | - | 600 | - |
| 15584 | DQF-B-220 | 2 jalan | 20 | G3 / 4 | 9.5 | 67 | 44 | - | 600 | - | 600 | - |
| 15585 | DQF-B-220A | 2 jalan | 20 | G3 / 4 | 1.5 | 67 | 44 | - | 600 | - | 600 | - |
| 15586 | DQF-B-220B | 2 jalan | 20 | G3 / 4 | 2.3 | 67 | 44 | - | 600 | - | 600 | - |
| 15587 | DQF-B-220C | 2 jalan | 20 | G3 / 4 | 4.5 | 67 | 44 | - | 600 | - | 600 | - |
| 15588 | DQF-B-220D | 2 jalan | 20 | G3 / 4 | 6.5 | 67 | 44 | - | 600 | - | 600 | - |
| 15589 | DQF-B-220E | 2 jalan | 20 | G3 / 4 | 20 | 66 | 36 | - | 600 | - | 600 | - |
| 15590 | DQF-B-225 | 2 jalan | 25 | G1 | 9.5 | 89 | 47 | - | 500 | - | 500 | - |
| 15591 | DQF-B-225A | 2 jalan | 25 | G1 | 23.5 | 81 | 42.5 | - | 500 | - | 500 | - |
| 15592 | DQF-B-232 | 2 jalan | 32 | G1-1 / 4 | 15 | 98.5 | 52.5 | - | - | - | 500 | - |
| 15721 | DQF-B-232A | 2 jalan | 32 | G1-1 / 4 | 36 | 89 | 96.8 | - | - | - | 500 | - |
| 15593 | DQF-B-240 | 2 jalan | 40 | G1-1 / 2 | 24 | 106 | 57 | - | - | 500 | - | 500 |
| 15594 | DQF-B-250 | 2 jalan | 50 | G2 | 42 | 123 | 62 | - | - | 400 | - | 400 |
| 15595 | DQF-B-315 | 3 arah | 15 | G1 / 2 | 5.6 | 60 | 39 | 30.5 | 600 | - | 600 | - |
| 15596 | DQF-B-315A | 3 arah | 15 | G1 / 2 | 1.2 | 60 | 39 | 30.5 | 600 | - | 600 | - |
| 15597 | DQF-B-315B | 3 arah | 15 | G1 / 2 | 2.5 | 60 | 39 | 30.5 | 600 | - | 600 | - |
| 15598 | DQF-B-315C | 3 arah | 15 | G1 / 2 | 3.6 | 60 | 39 | 30.5 | 600 | - | 600 | - |
| 15599 | DQF-B-315D | 3 arah | 15 | G1 / 2 | 4.6 | 60 | 39 | 30.5 | 600 | - | 600 | - |
| 15600 | DQF-B-320 | 3 arah | 20 | G3 / 4 | 9.5 | 67 | 44 | 32 | 600 | - | 600 | - |
| 15601 | DQF-B-320A | 3 arah | 20 | G3 / 4 | 1.5 | 67 | 44 | 32 | 600 | - | 600 | - |
| 15602 | DQF-B-320B | 3 arah | 20 | G3 / 4 | 2.3 | 67 | 44 | 32 | 600 | - | 600 | - |
| 15603 | DQF-B-320C | 3 arah | 20 | G3 / 4 | 4.5 | 67 | 44 | 32 | 600 | - | 600 | - |
| 15604 | DQF-B-320D | 3 arah | 20 | G3 / 4 | 6.5 | 67 | 44 | 32 | 600 | - | 600 | - |
| 15605 | DQF-B-325 | 3 arah | 25 | G1 | 13 | 89 | 47 | 46.5 | 500 | - | 500 | - |
| 15606 | DQF-B-332 | 3 arah | 32 | G1-1 / 4 | 15 | 98.5 | 52.5 | 49 | - | - | 500 | - |
| 15607 | DQF-B-340 | 3 arah | 40 | G1-1 / 2 | 24 | 106 | 57 | 52 | - | 500 | - | 500 |
| 15608 | DQF-B-350 | 3 arah | 50 | G2 | 42 | 123 | 62 | 69 | - | 400 | - | 400 |
Catatan: DN15 ~ Katup bola DN20, A: KV1.6, B: KV2.5, C: KV4.0, D: KV6.3, E: diameter penuh.DN25 ~ DN50, tanpa huruf: menunjukkan tanpa baling-baling pemandu.
